The new Lapis range from Salice is made of two covers which move with the hinge elements synchronously, hiding the technical components and enriching the product with refined aesthetics, far from the traditional geometries of furniture hinges.
Tech Details
- Full overlay hinge - 0mm crank
- Wood screw fixing (not supplied)
- To suit door thickness 16-26mm

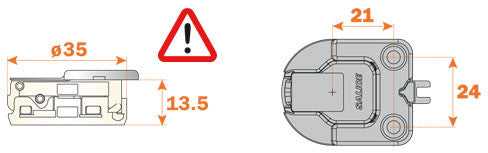

- 35mm diameter cup
- 13.5mm deep cup
- 110 Degree opening

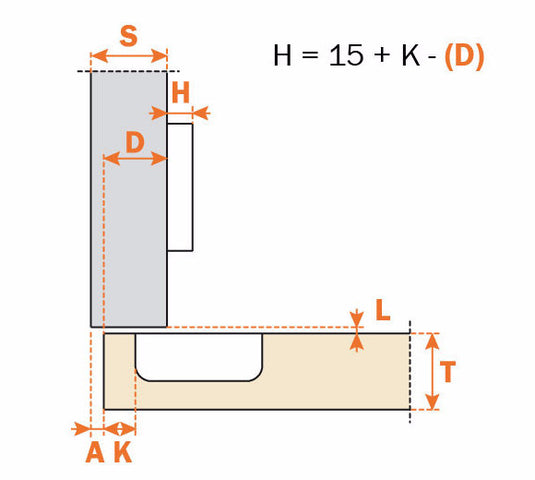

- Possible drilling distance (K): 3mm - 6mm
Lapis is sold as a complete unit (not pair, please select two for that), just select the finish of cover you desire using the drop-down box and you're good to go. That includes:
- C716AE9 Silentia+ 0mm Crank Full Overlay Soft Close Hinge
- 0mm Clip-On Mount Plate - BAP3R09
- Arm Cover
- Cup Cover
Cover Finishes Available from stock:

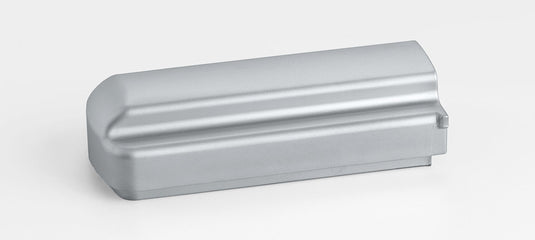

- Satin Chrome (P7A0A09 & P7SXA09SN)

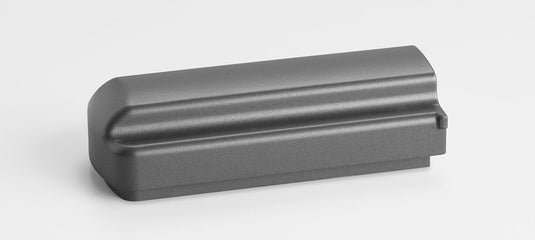

- Satin Metal Black (P7A0A10 & P&SXA10SN)

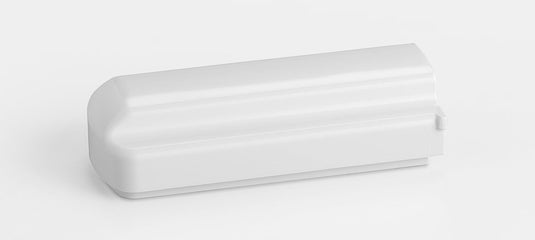

- Matt White (P7A0A11 & P7SXA11SN)

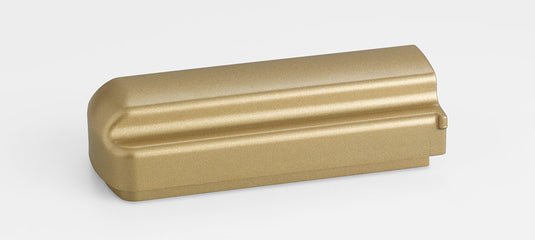

- Satin Gold (P7A0A1W & P7SXA1WSN)

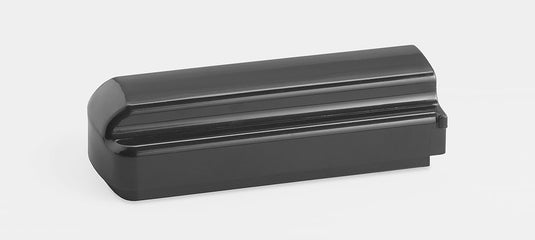

- Black (P7A0AA3 & P7SXAA3SN)
We can also order the following covers in a as special order, but there would be a minimum order quantity applicable. Please email us at sales@salicedirect.com to enquire.
Cover finishes available to order:
- Champagne (P7A0A0C & P7SXA0CSN)
- Glossy Chrome (P7A0A06 & P7SXA06SN)
- Glossy Metal Black (P7A0A0N & P7SXA06SN)
- Stainless Steel (P7A0A0I & P7SXA0ISN)
- Graphite (P7A0A05 & P7SXA05SN)
- Glossy Gold (P7A0A08 & P7SXA08SN)
- Old Brass (P7A0A07 & P7SXA07SN)
Downloads
Lapis Series 700 Technical Information
