Salice Folder 180 provides versatility, fluidity and reduction of any obstruction.
Folder can be fixed either on the top or under the base panel of the cabinet, a feature that makes it even more versatile and functional.

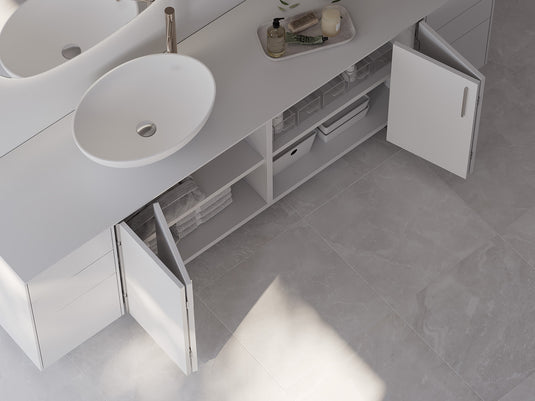

When opened, the two doors fold and overlap each other until they automatically reach the point of maximum opening. This frees the cabinet interior from any obstruction and allows the unencumbered opening of full-width internal drawers without the use of spacers.
Key Technical Details:
- Automatic opening and closing action controlled by silicon oil dampers and by a magnetic damper for a smooth and gently decelerated movement
- Fixing of the doors to the cabinet side with external SERIES M hinges or with recessed CONECTA hinges
- Adjustment of the opening and closing speed of the doors
- Fully adjustable in three directions
- Thickness of wooden door with SERIES M hinges from 18 mm to 24 mm
- Thickness of wooden door with CONECTA hinges from 18 mm to 25 mm
- Thickness of wooden door with profile VE79KITE710_A with CONECTA hinges from 22 mm to 25 mm
- Width of each single wooden door from 350 mm to 750 mm
- Width of each single aluminium-framed door from 350 mm to 600 mm
- Door height: Min. 600 mm - Max. 2800 mm

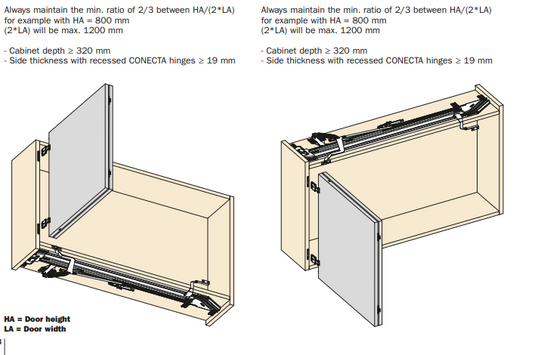

- Cabinet depth ≥ 320 mm
- Side thickness with recessed CONECTA hinges ≥ 19 mm
- Max weight for two doors: 50kg
