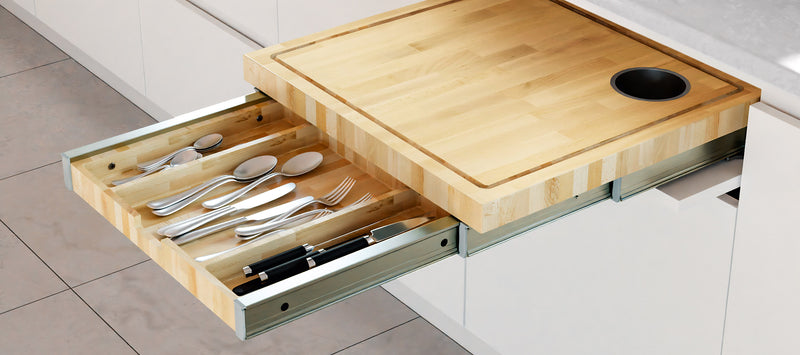

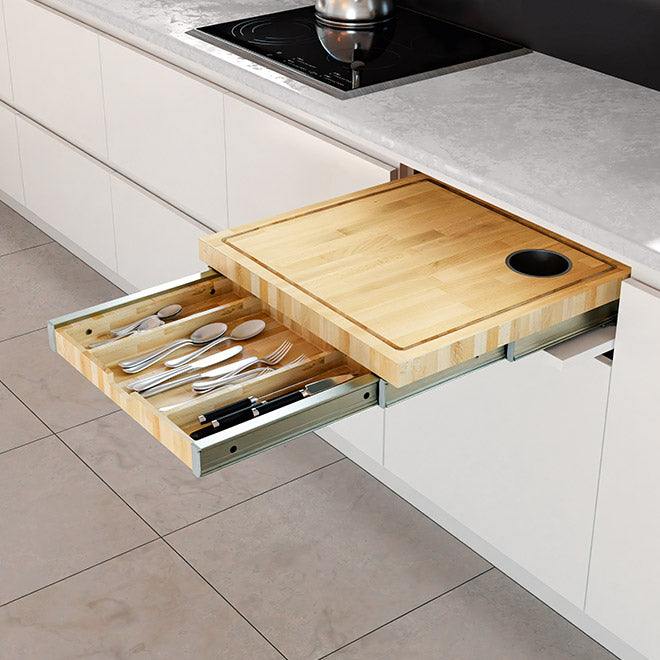

Salice Atim's Blade mechanism pulls out a drawer combining a chopping board with an integrated cutlery tray, keeping prep tools and worktop within easy reach of the hob.
From the Salice Dinamico collection: dynamic, flexible systems designed to perform multiple functions in a single piece, for compact rooms or multi-purpose spaces.
Dimensions

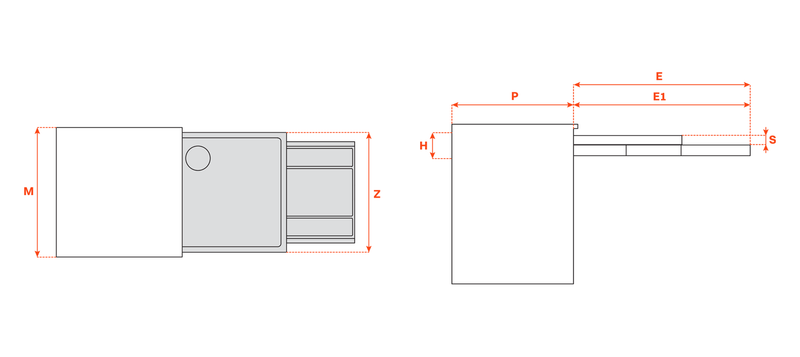

Letters refer to the technical drawing in the product images.
| M - Width | 600mm |
|---|---|
| P - Depth | min 560mm |
| H - Height | min 120mm |
| S1 - Side thickness | 16/19mm |
| E1 - Top opening 1 | 500mm |
| E - Top opening | 820mm |
| Z - Top width | 555mm |
| S - Top thickness | min 40mm |
Supplied as frame only, ready for a tabletop of your choice. Manufacturer's technical information available; contact us if you'd like a copy or need help choosing the right size for your cabinet.
